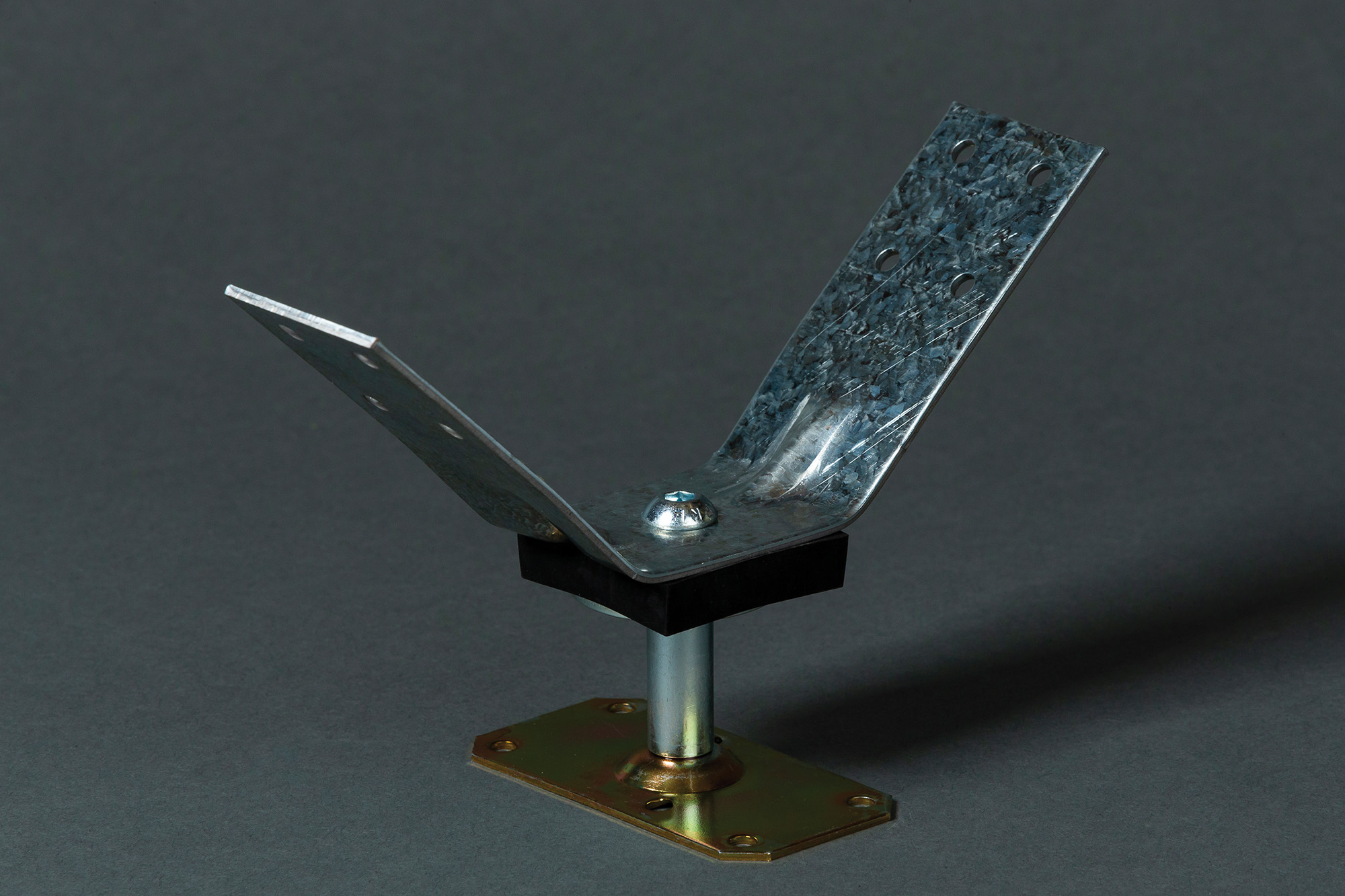

All Tracklok Ltd products have been developed using sound engineering principles and in accordance with the New Zealand Building Code. The performance and capacity of all brackets has been quantified by physical testing, while real world seismic events continue to prove the validity of Tracklok.

  • Tested with head track and full wall construction to provide confidence.Provides seismic separation, preserving ceiling warranty.
  • Ensures validity of installers PS3.
  • Unique design allows for 50mm of interstory drift.
  • Top plate pivot points allow for 90mm of in-line wall deflection.
  • Unique design allows for 20mm of wall “spring back” in ULS event.
  • Patented low profile connection bolt allows for glazing clearance.
  • Unit allows a 30° – 60° bracing angle to mitigate service clashes.
  • Unit tested to 45° off wall axis to mitigate service clashes.
  • TRACKLOK® VERT allows vertical bracing to mitigate service clashes.
  • TRACKLOK® RETRO allows for retro active installation using 10 gauge wafer tech screws to affix to head track.
  • Allows for 64mm and 92mm bracing to be used, reducing waste on site.
  • Complies to and provides compliance with AS/NZS 1170 and AS/NZS 4219.
  • Provides compliance with NZ Building Code Clause B1 – Structure, B2 – Durability, F2 – Hazardous Building Materials.
  • Contributes to compliance with NZ Building Code Clause F6 – Visibility in Escape Routes, Clause D1 – Access Routes.
