Armstrong

Armstrong Woodworks Grille Tegular

Wood Ceilings

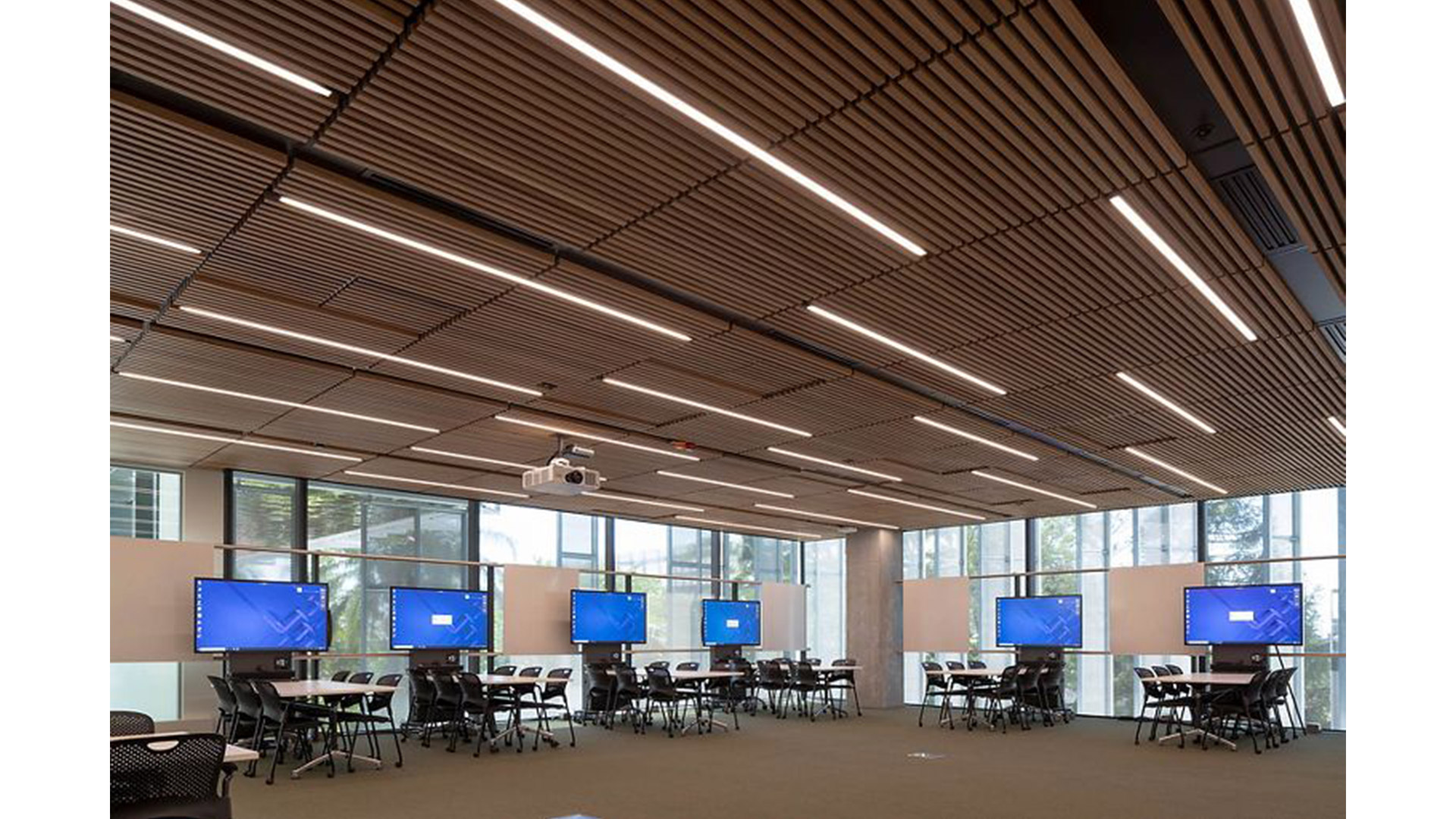

Armstrong Woodworks Grille – Tegular are warm, natural wood ceiling panels that create dramatic lines adding a unique perspective to your design. Made from 100% natural sustainable bamboo they are available in 600x600 and 1200x600 panel sizes with Vertical or Horizontal profiles and natural or carbonised finishes available. Woodworks Grille Tegular is easily installed into 24mm Black Peakform grid.

Documents

Suitable for: Ceilings, Commercial, Education, Office, Interior, Wood, Classroom, Acoustic, Retail, Transport, Suspended, Decorative, Council, Hospitality, Feature Products, Mixed Use, Hall / Conference, Non-Structural, School, Specialty, Entrance / Lobby
Panel material: 100% Natural Bamboo
Profile: Horizontal Slats or Vertical Blades
Surface finish: Available in Carbonised (C) or Natural (N)
Edge detail: Tegular
Module sizes: 600 x 600mm or 1200 x 600mm
Acoustic performance: NRC up to 0.55 with Black P16 Acoustical Fleece. NRC up to 0.85 with Black P16 Fleece and Black Optra 15mm Acoustical overlay panels
Panel weight: 8.6kgs m2
Fire performance: Conforms to NCC Spec C1.1 as tested in accordance with AS 5637.1 - Group 3

Specification

Armstrong WOODWORKS Grille Tegular Ceiling panels (either Horizontal Slats or Vertical Blades) including P16 Acoustical Fleece, installed on Black PEAKFORM Prelude XL 24mm Tee Bar Suspension Grid. Main Bars to be installed at 600mm OC. with suspension hangers at 1200mm OC.

Benefits

Sustainable: Rapidly Renewable solid bamboo blades and slats
Easy installation on standard Black PeakForm Prelude XL 24mm Tee Grid
Panels available in two pre-designed configurations: Horizontal Slats or Vertical Blades
Acoustic options for quieter, less reverberant spaces
Two standard bamboo finishes
Two standard panel sizes
