PROMASEAL® Pillows

Fire Stopping

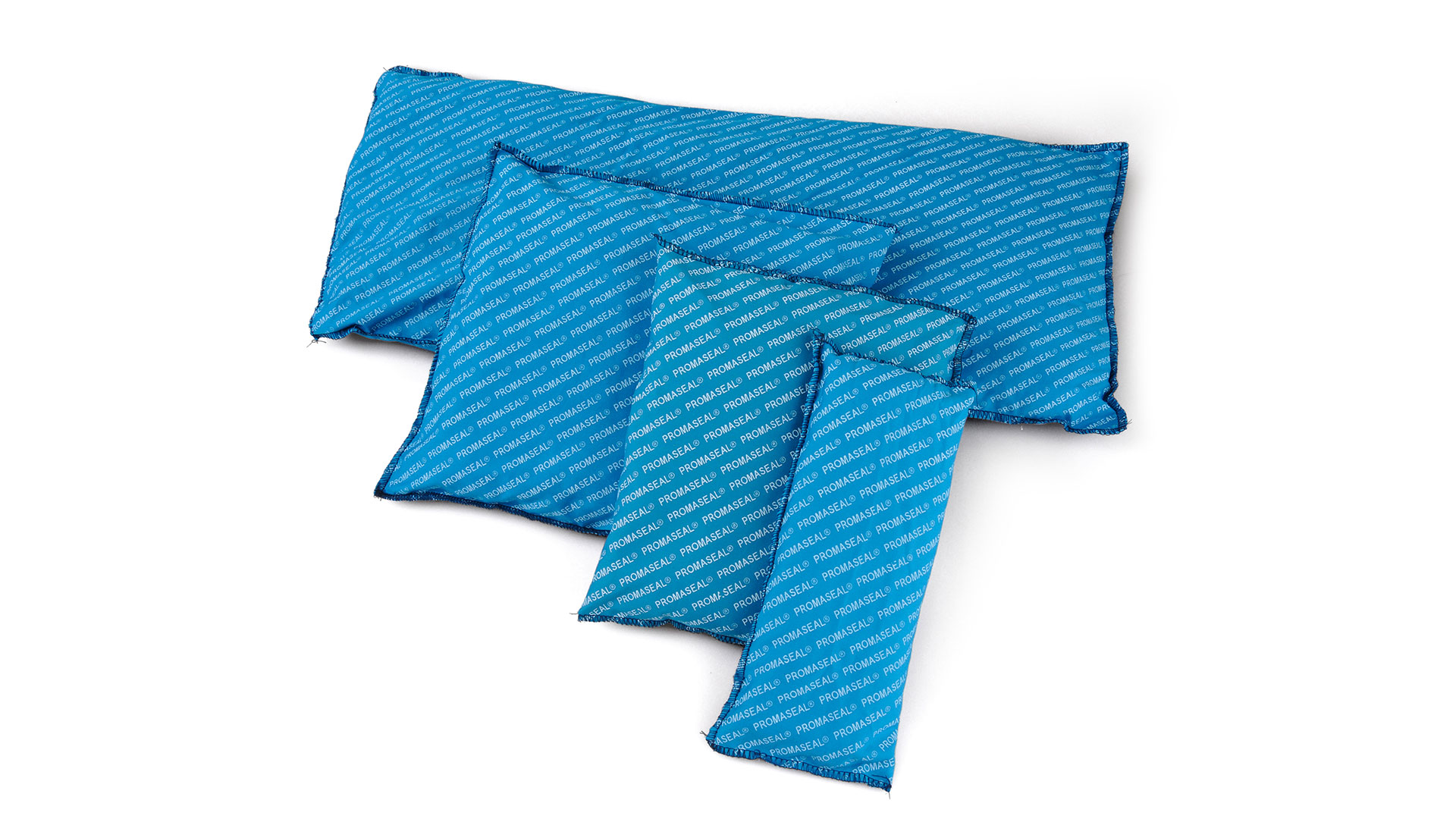

PROMASEAL® Pillows are manufactured from treated cloth filled with a high density, granulated fire seal material. When exposed to fire, the pillows remain in place, thus forming a fire barrier of a solid mass of insulating material. PROMASEAL® Pillows are used in special occasions where other fire barrier solutions cannot be used. Between 100 and 130 are usually required per m² of an open area; however, the pillows can be easily placed in many openings where it would be difficult to apply other products or wet systems.

Documents

Suitable for: Fire Stopping, Interior, Commercial, Passive Fire

Specification

Simple to install
Wall openings up to 0.7m2
Slab openings up to 0.3m2
120 mins insulation with use of Extra Large Pillows on cables and cable trays
Tested for FR plasterboard, Concrete, Masonry, PROMATECT® L500
Tested to AS1530.4 & AS4072.1
