ACS Coruline

Metal Ceiling Systems

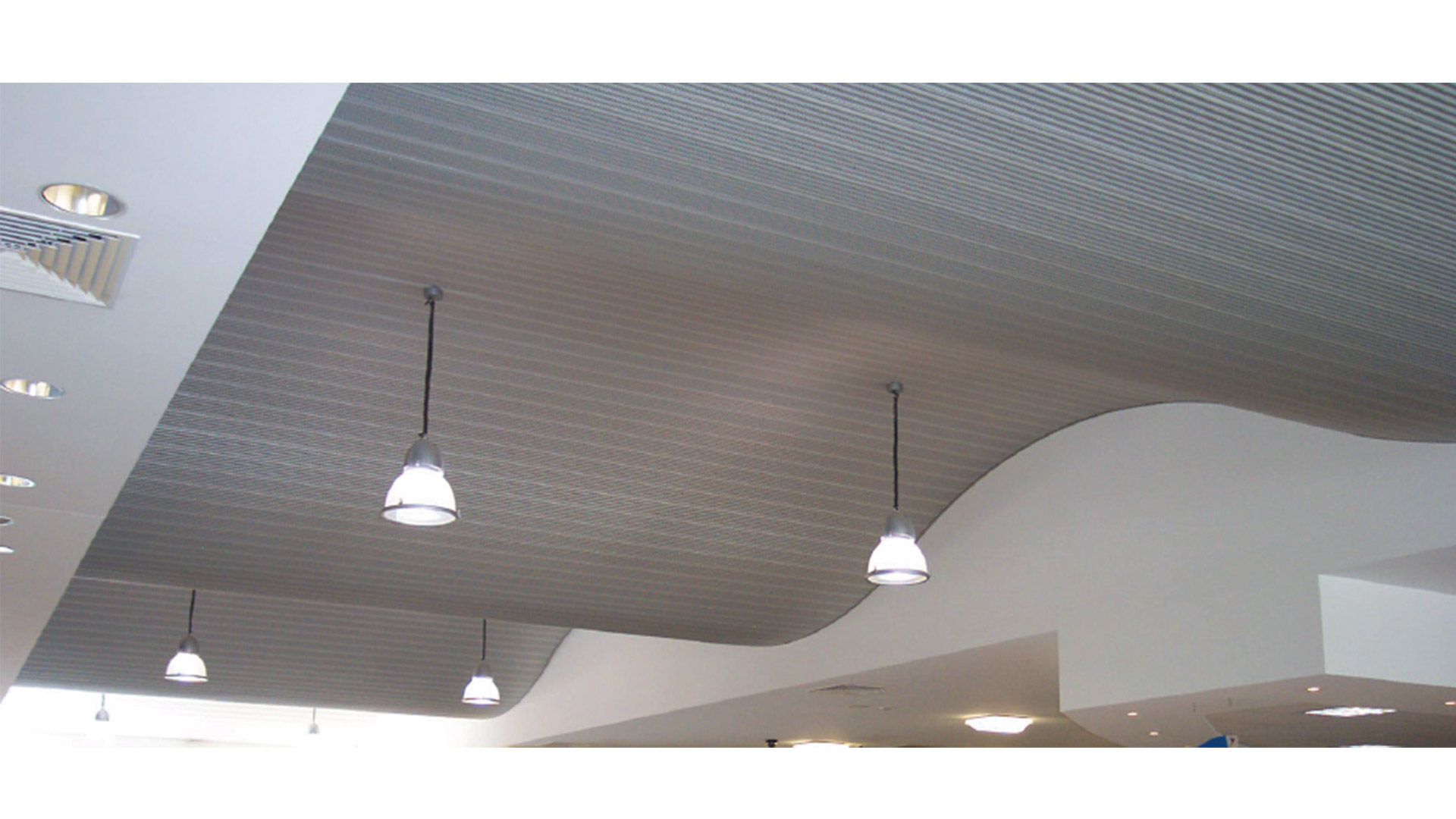

Coruline is a mini-corrugated linear strip metal ceiling or wall lining which can be directly fixed to most timber and steel substrates. It has concealed edge fixings and a finished width of 160mm available in lengths up to 6 metres. Perforated Coruline provides acoustic absorption with a glasswool or polyester insulation blanket installed behind.

Documents

Suitable for: Ceilings, Metal, Commercial, School, Acoustic, Gymnasium, Hall / Conference, Suspended, Education, Non-Structural, Transport
Acoustic performance: An NRC of up to 0.90 can be achieved with the use of a fibreglass or polyester insulation layer behind perforated Coruline
Fire performance: ISO 5660-1 Group 1S classification (in accordance with NZBC Verification Method C/VM2 Appendix A)

Specification

Coruline is available in plain or perforated options in zincalume or aluminium base metals.
Off White or Colorbond colours are available, as is clear finish over zincalume, or powder coating to the aluminium. All projects are supplied to order.
Benefits of ACS Coruline
- Concealed Fixings.
- Available in Perforated & Non Perforated.
- Acoustic or non-acoustic.
- Minimal End joints due to 6m lengths.
- Low traditional profile.
- Strong Machine Curve Rolled carriers.
- Easy to install.
Each panel is nominal 160mm wide and up to 6m in length.

Documents

ACS Coruline Specification
pdf
Download
ACS Coruline Material Information
pdf
Download
